DTC B1C2E: Side-airbag Module (RH) (Squib) System (Short Circuit between Squib Circuit Terminals): Notes

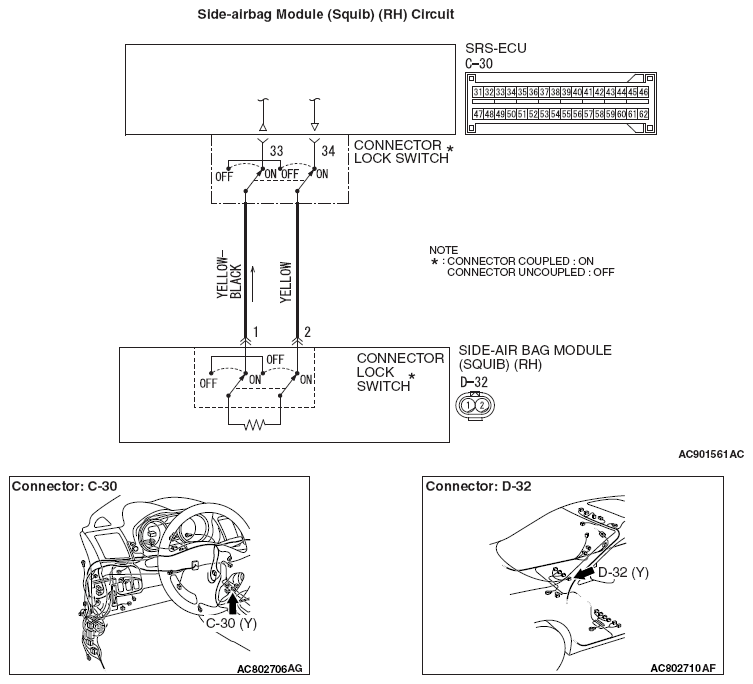

Fig 1: Side-Airbag Module (Squib) (RH) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1C2E is set in the SRS-ECU, always diagnose the CAN bus lines.
