DTC B1C29: Side-airbag Module (LH) (Squib) System (Squib Circuit Open): Notes

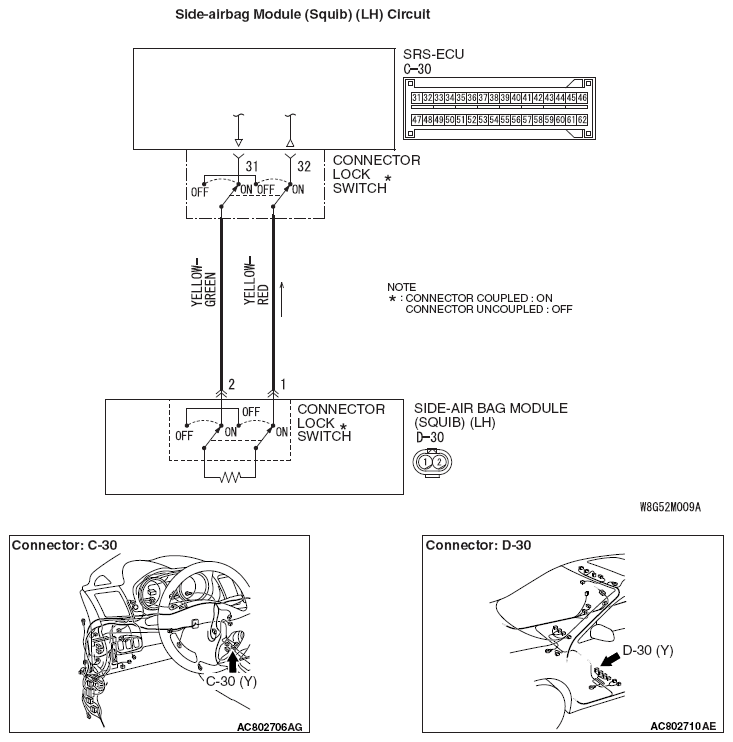

Fig 1: Side-Airbag Module (Squib) (LH) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1C29 is set in the SRS-ECU, always diagnose the CAN bus lines.
