DTC B1B1B: Curtain Air Bag Module (LH) (Squib) System (Short Circuit between Squib Circuit Terminals): Notes

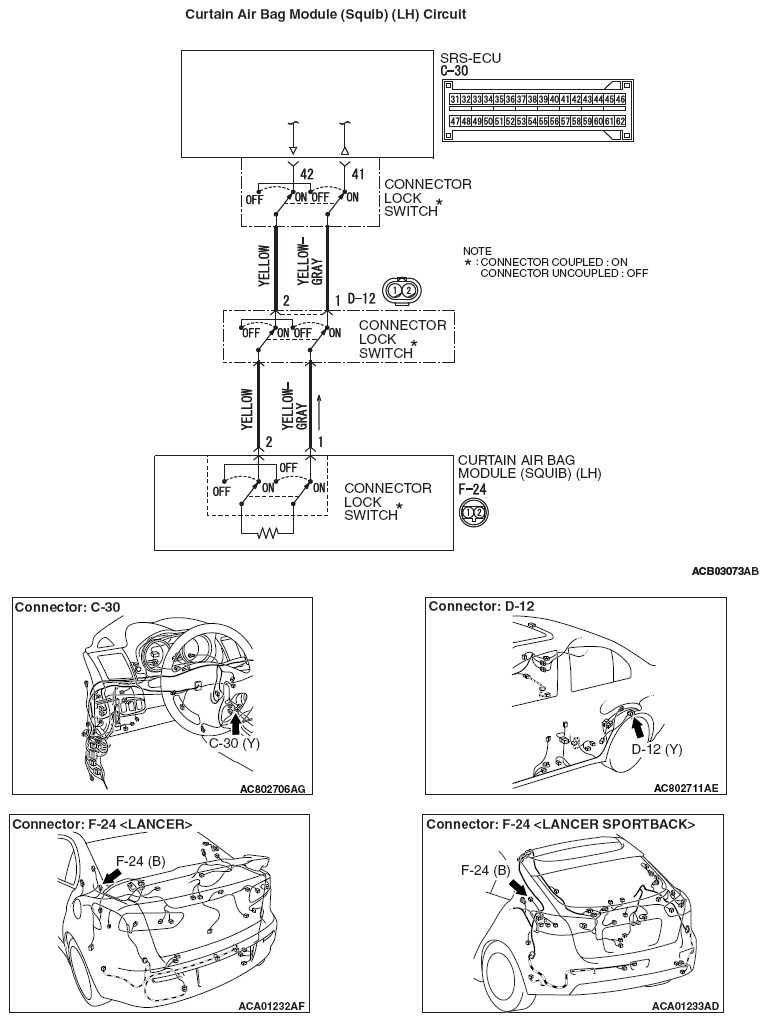

Fig 1: Curtain Air Bag Module (Squib) (LH) Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B1B is set in the SRS-ECU, always diagnose the CAN main bus line.
