DTC B1206: Passenger's Air Bag OFF Indicator Light (Open Circuit): Notes

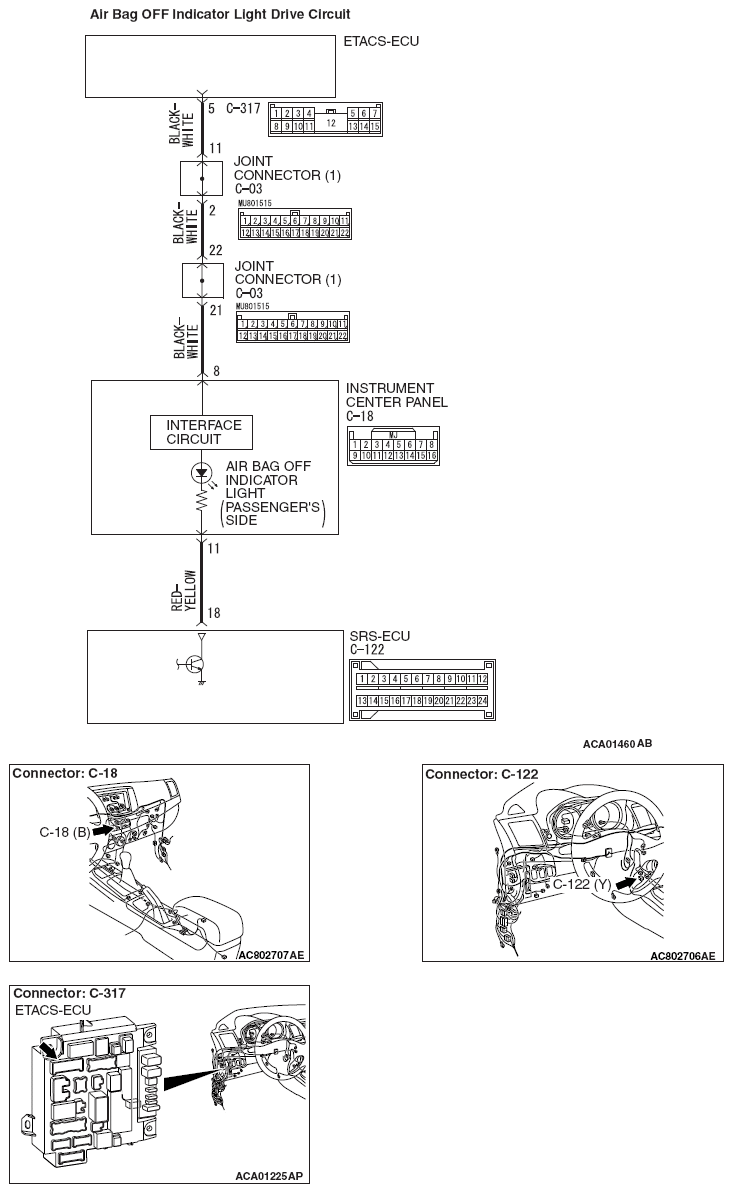

Fig 1: Air Bag OFF Indicator Light Drive Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1206 is set in the SRS-ECU, always diagnose the CAN main bus line.
