DTC B1B8E: Seat Slide Sensor (power supply side) Short Circuit: Notes

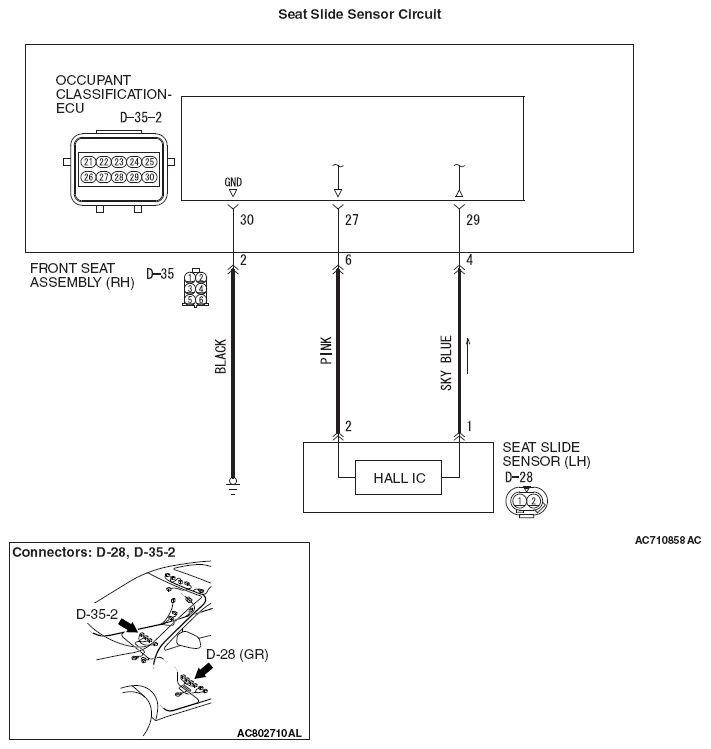

Fig 1: Seat Slide Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC B1B8E is stored in the occupant classification-ECU, always diagnose the CAN main bus lines.
