DTC B1B8C: Driver Seat Slide Sensor Circuit Performance: Notes

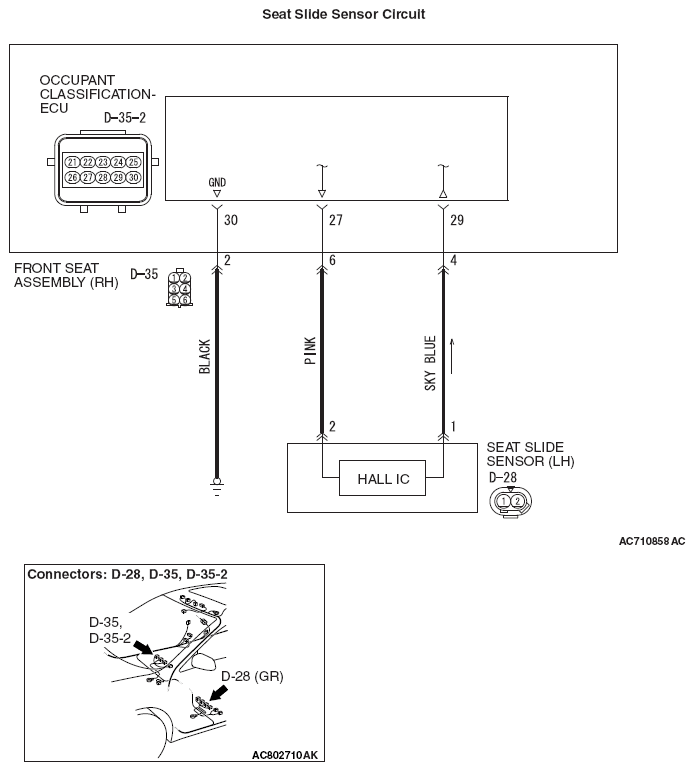

Fig 1: Seat Slide Sensor Circuit Diagram
G09629627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If DTC B1B8C is set in the occupant classification-ECU, always diagnose the CAN main bus lines.
