Seat Slide Sensor

  1. Check that there is no connector damage, bent terminals or harness crimping.
  2. Check the installation of the seat slide sensor.

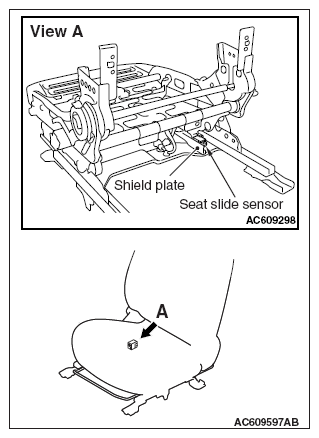

    Fig 1: Identifying Seat Slide Sensor And Shield Plate
    G09629688Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
