Curtain Air Bag Module

  1. Check that the curtain air bag deployment part of the headlining is normal.
  2. Check the inflator surface for cracks, dents or deformations.
  3. Check the connector for damage, the terminal for deformation, and the harness for binding.

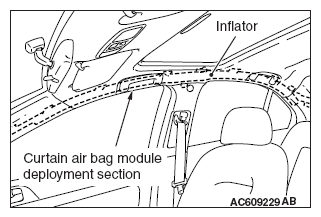

    Fig 1: Identifying Curtain Air Bag Module Deployment Section
    G09629690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
