<< B >> Passenger's (Front) Air Bag Module Removal

WARNING:
  • The air bag module must not be measured with such equipment as an ohmmeter.
  • The air bag module must not be disassembled.
  • The removed air bag module should be stored in a clean, dry place with the deployment surface facing up.

Insert a flat-tipped screwdriver or similar tool to the location shown in the illustration . After disengaging the tabs, remove the passenger's (front) air bag module.

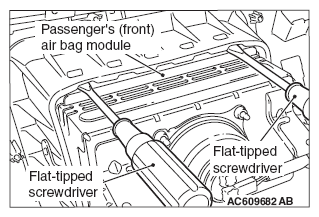

Fig 1: Removing Passenger'S (Front) Air Bag Module
G09629733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
