Construction Diagram

< Except RALLIART >

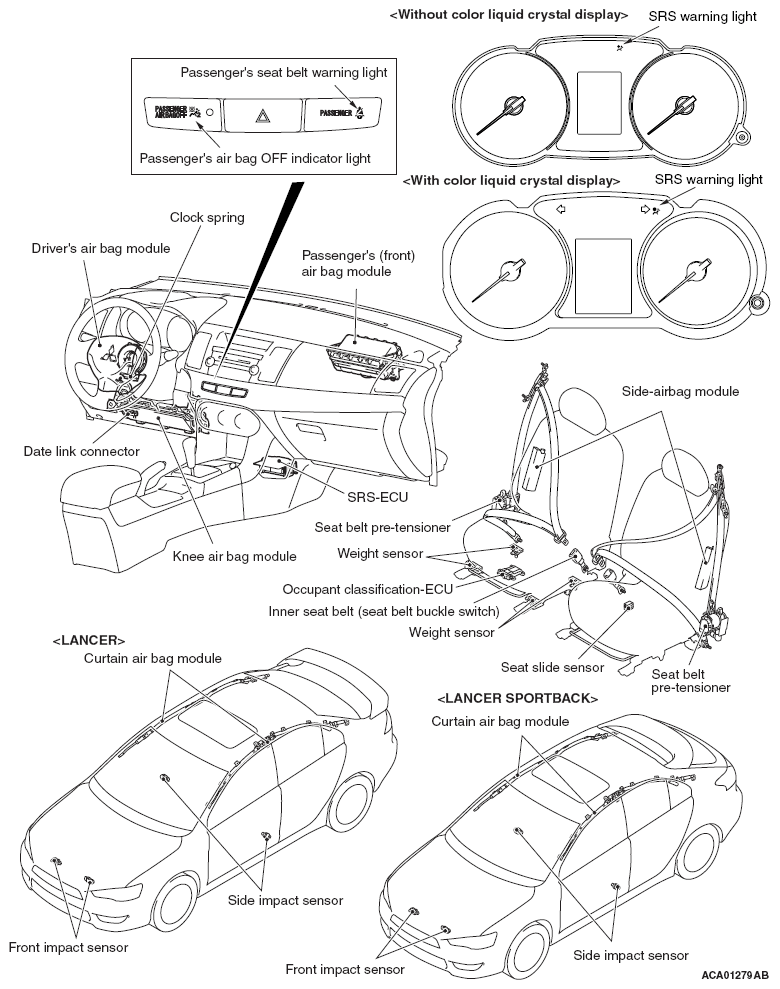

Fig 1: Construction Diagram - Except Ralliart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< RALLIART >

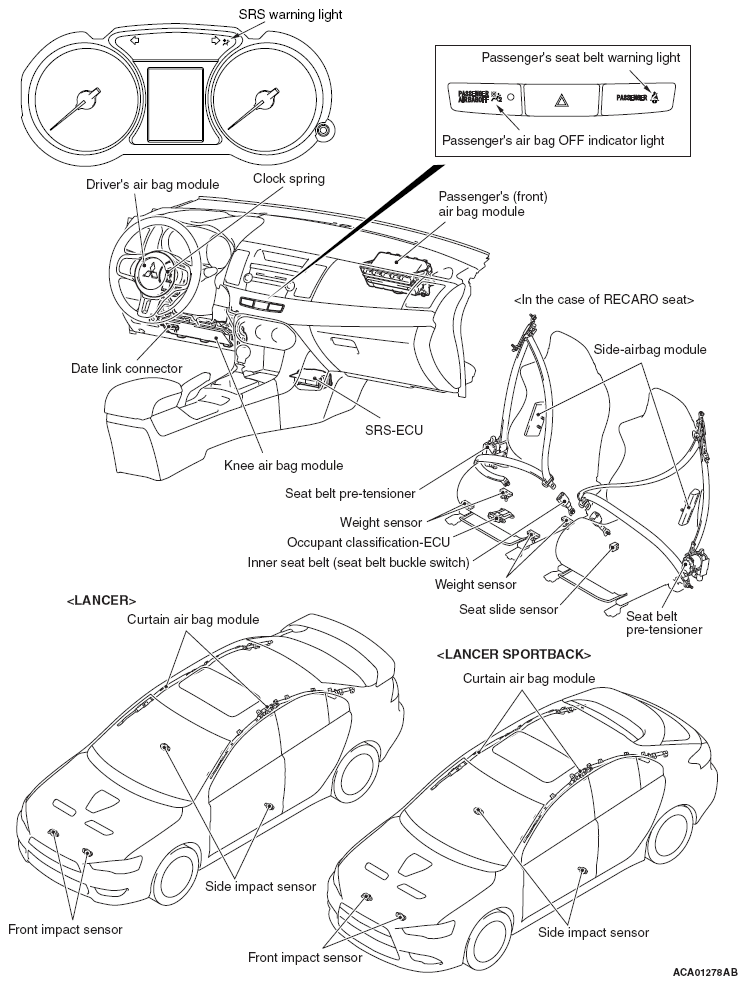

Fig 2: Construction Diagram - Ralliart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: This construction diagram shows the general view of the SRS components. For details, refer to "SCHEMATIC ", "CONFIGURATION DIAGRAMS ", and "CIRCUIT DIAGRAM ".
