Component Location

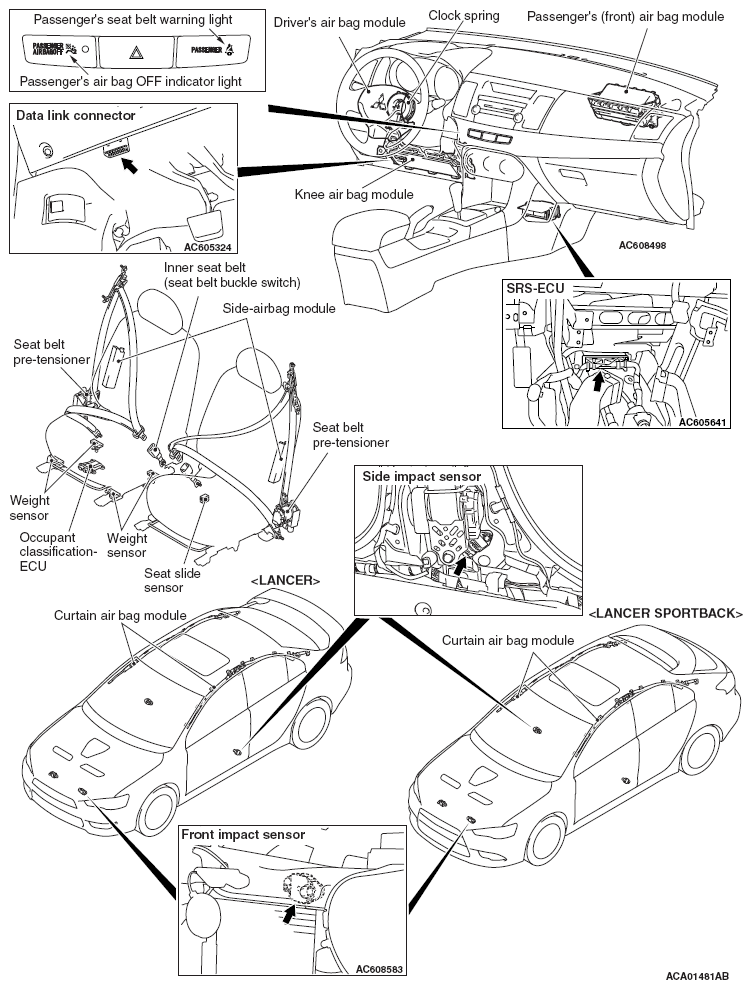

Fig 1: SRS-ECU Component Location
G09629187Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the front impact sensor (LH) and the side impact sensor (LH). The position of the front impact sensor (RH) and the side impact sensor (RH) is symmetrical to this.
