Removal And Installation: Notes

WARNING:
  • Never repair or disassemble the front impact sensor. If faulty, replace it.
  • Handle the front impact sensors very carefully, taking care not to drop them. They must be replaced if they are dropped.
  • Replace the sensors with new ones after the air bag has deployed.

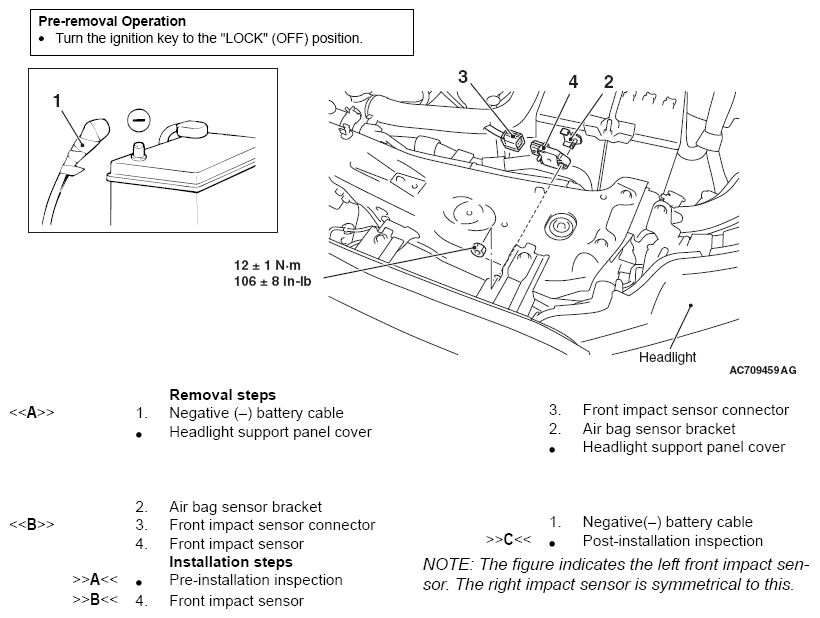

Fig 1: Removing/Installing Front Impact Sensors Components With Torque Specification
G09629699Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
