<< C >> Curtain Air Bag Module Removal

WARNING:
  • The air bag module must not be measured with such equipment as an ohmmeter.
  • The air bag module must not be disassembled.
  • The removed air bag module should be stored in a clean, dry place with the deployment surface facing up.

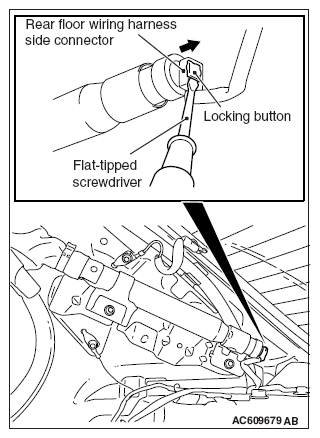

Fig 1: Removing Rear Floor Wiring Harness Side Connector
G09629759Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
