Lancer ES Sportback
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior - Lancer
>>
Trims
>>
Liftgate Trim
>>
Removal And Installation
Removal And Installation

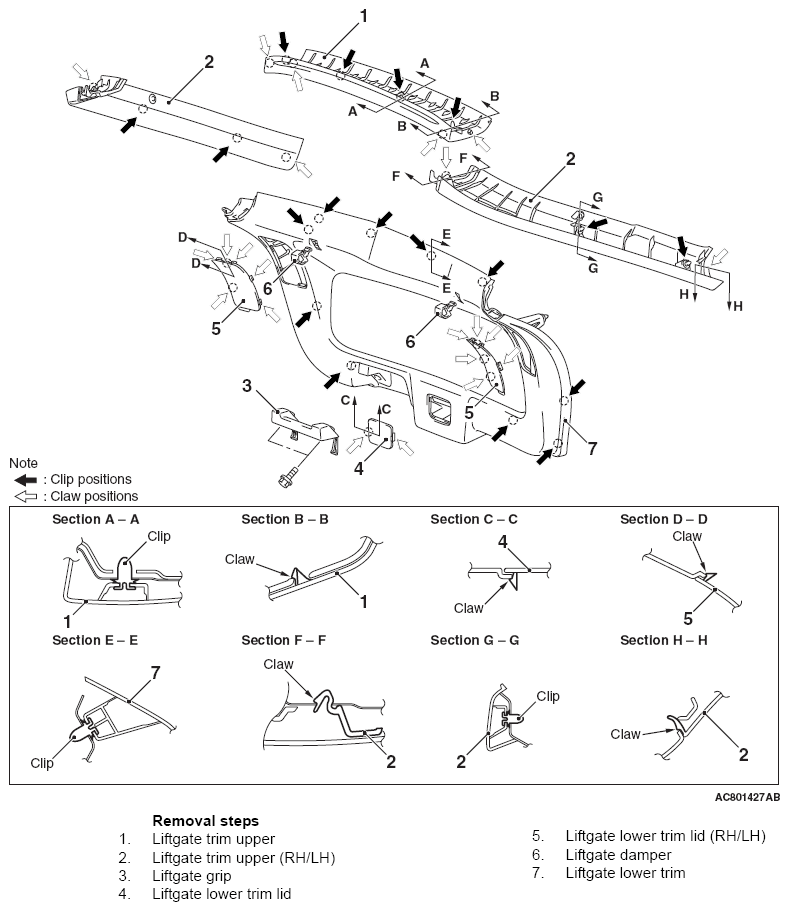

Fig 1: Exploded View Of Liftgate Trim
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
