< Lancer:Split Seat >

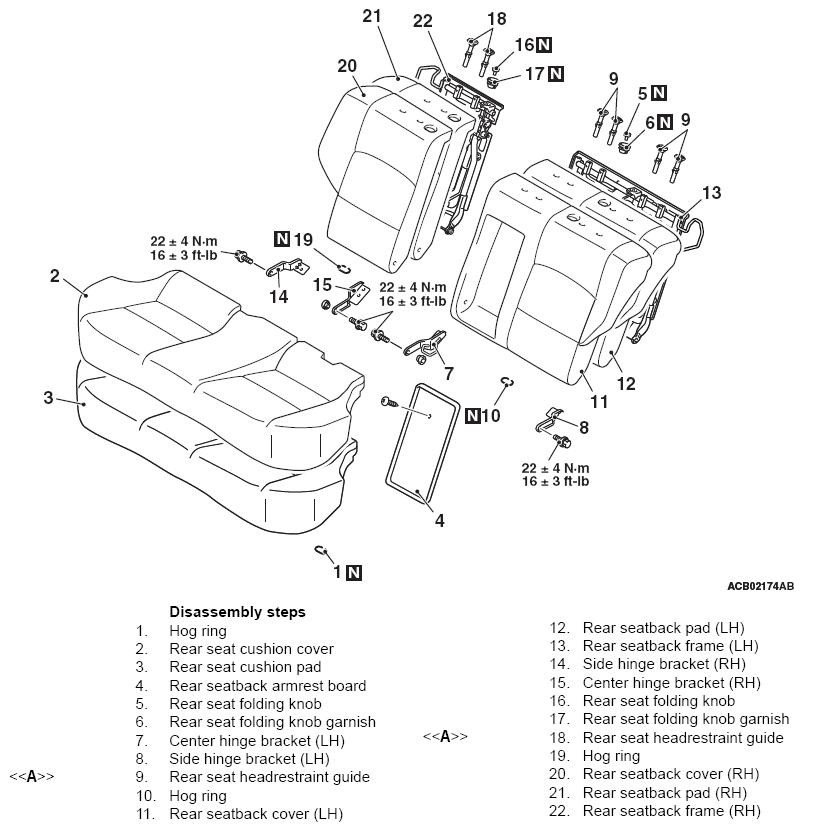

Fig 1: Exploded View Of Seat Assembly With Torque Specifications (Lancer: Split Seat)

G09629158

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
