< Lancer SPORTBACK >

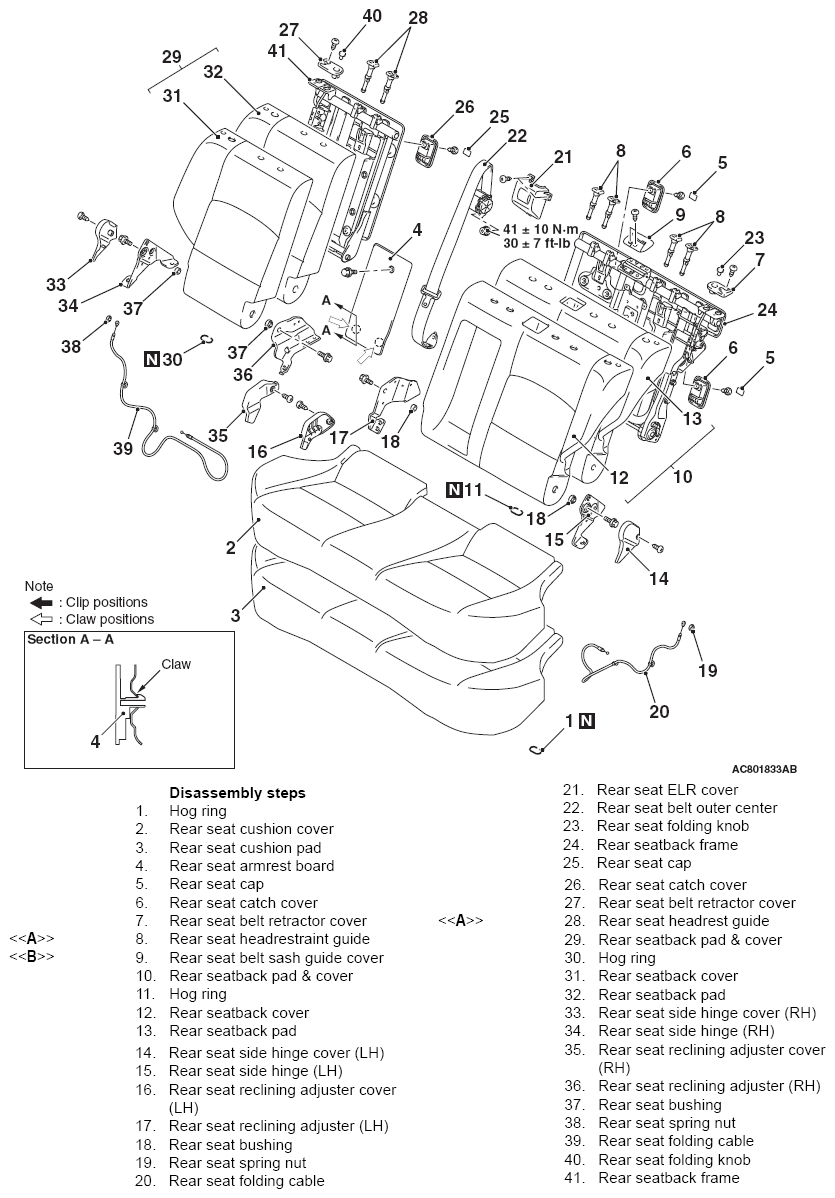

Fig 1: Exploded View Of Seat Assembly With Torque Specifications (Lancer Sportback)

G09629159

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
