< STANDART Seat, Sport Seat >

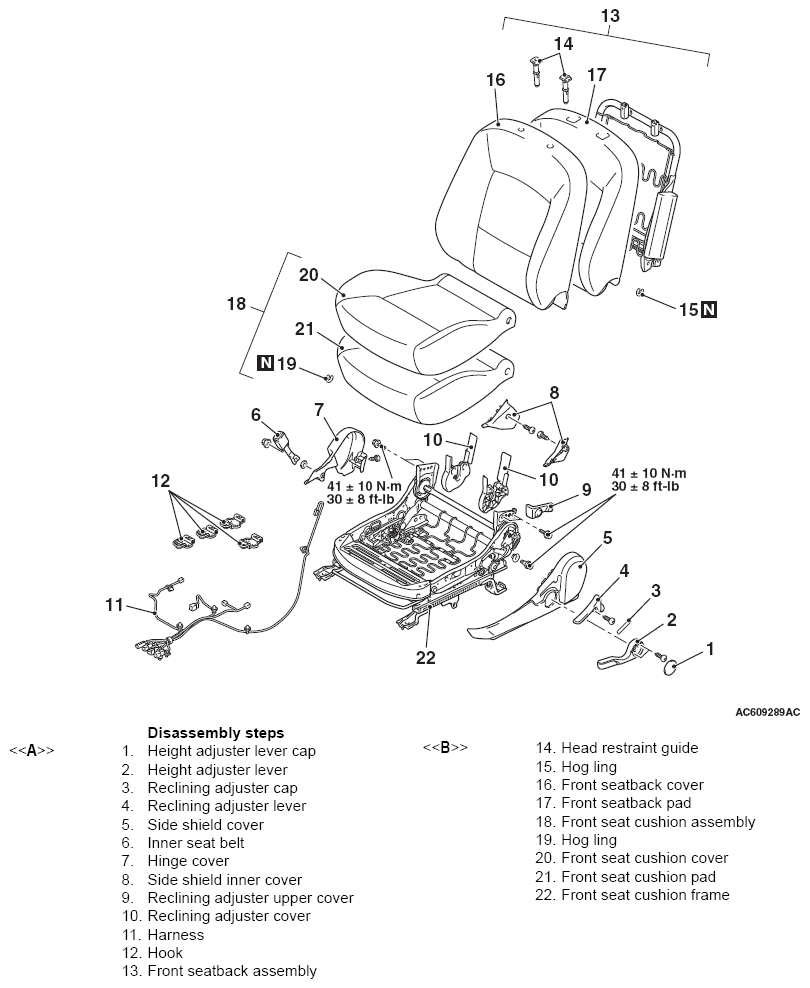

Fig 1: Exploded View Of Seat Assembly With Torque Specifications (Standart Seat, Sport Seat)

G09629145

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
