Interior - Lancer
>>
Instrument Lower Panel
>>
Removal And Installation
Removal And Installation

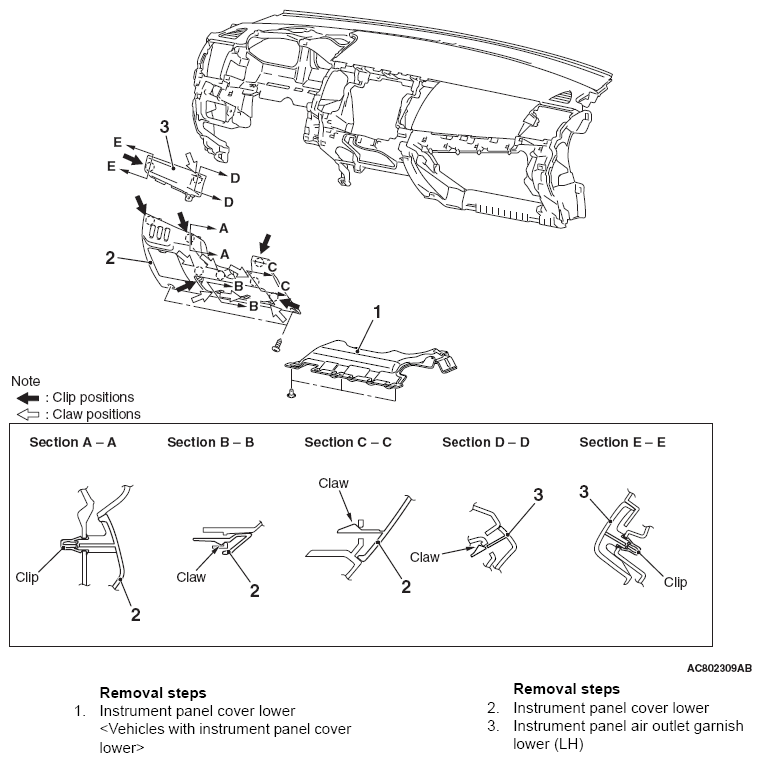

Fig 1: Exploded View Of Instrument Lower Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
