13. Transfer Oil (Check Oil Level And Condition/Change): Change

Remove the drain plug and gasket, and gasket to drain the transfer oil.
Install the drain plug and new gasket, and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)
Remove the filler plug and gasket, then fill the oil up to the lower edge of the filler plug hole.
Brand name: Mitsubishi Motors Genuine hypoid gear oil API classification GL-5 SAE 80

Filling amount: 0.47 dm ³ (0.50 qt)

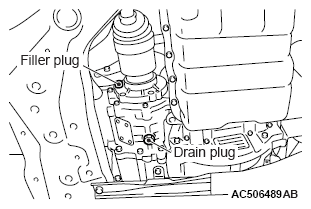

Fig 1: Identifying Drain And Filler Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the filler plug and new gasket, then tighten them to the specified torque.
Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

Fig 2: Identifying Filler Plug Hole, Filler Plug And Gasket
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
