<< D >> 5TH Drive Gear Removal

WARNING: This page is about a different variant/trim than selected.

Using special tool MB990801, remove the 5th drive gear.

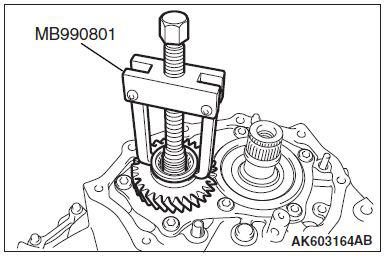

Fig 1: Removing 5th Drive Gear Using Special Tool MB990801
G05375634Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
