>> K << Oil Seal Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using special tool MB992212 and MB992075, install the oil seal.
  2. Pack grease to the oil seal lip area.

    Specified grease: Mitsubishi Motors Genuine Part No. 0101011 or equivalent

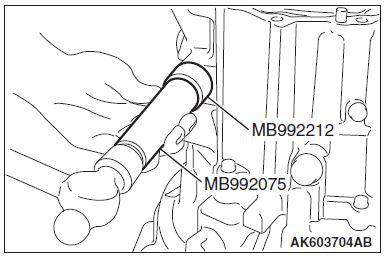

    Fig 1: Installing Oil Seal Using Special Tool MB992212 And MB992075
    G05375666Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
