>> C << Reverse Shift Arm Bracket Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Fit the arm tip of the reverse shift fork into the mating slot in the reverse shift arm bracket assembly.

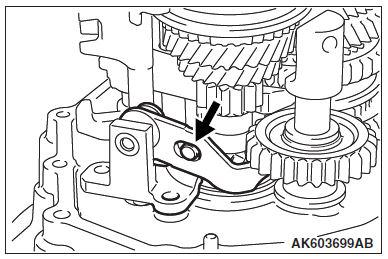

Fig 1: Locating Shift Arm Bracket Bolt
G05375647Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
