>> C << Tapered Roller Bearing Outer Race Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set special tools MB991015 and MB990938.

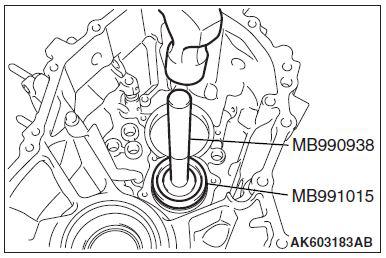

    Fig 1: Identifying Special Tools MB991015 And MB990938
    G05375714Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Press-fit the tapered roller bearing outer race to the height shown in the illustration.

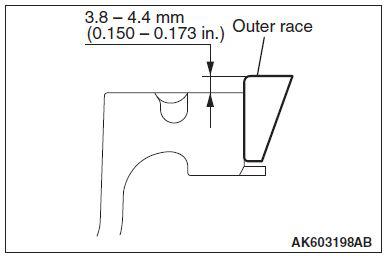

    Fig 2: Identifying Roller Bearing Outer Race Dimension
    G05375715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
