>> A << Oil Seal Installation

WARNING: This page is about a different variant/trim than selected.

Using special tools MB992210 and MB992075, press-fit the oil seal until the difference in height between the transaxle case and oil seal is obtained as shown in illustration.
Pack grease to the oil seal lip area.
Specified grease:

Mitsubishi Motors Genuine Part No. 0101011 or equivalent

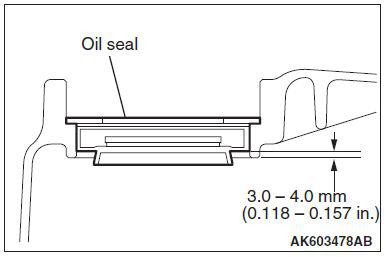

Fig 1: Pressing Oil Seal Using Special Tools MB992210 And MB992075
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Oil Seal Lip Area
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
