>> A << Tapered Roller Bearing Inner Race Installation

WARNING: This page is about a different variant/trim than selected.

Using special tools MD998812, MD998813 and MD998820, install the tapered roller bearing inner race.

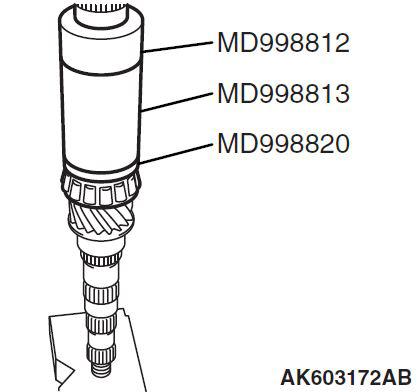

Fig 1: Installing Tapered Roller Bearing Inner Race Using Special Tools MD998812, MD998813 And MD998820
G05375684Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
