<< B >> Synchronizer Sleeve No. 2, Synchronizer Hub No. 2 And 3RD Gear Sub-Assembly Removal
WARNING: This page is about a different variant/trim than selected.

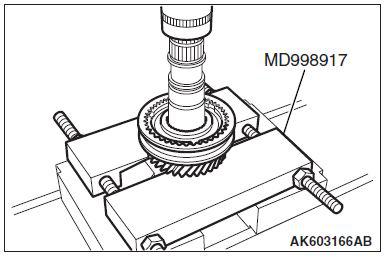

Using special tool MD998917, support the 3rd gear sub-assembly and remove the 3rd gear sub-assembly, synchronizer sleeve No. 2 and synchronizer hub No. 2.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
