<< A >> Radial Ball Bearing Removal

WARNING: This page is about a different variant/trim than selected.

Using special tool MD998917, support the radial ball bearing and remove the radial ball bearing.

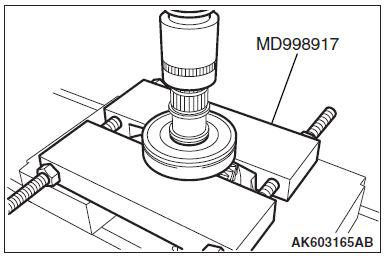

Fig 1: Removing Radial Ball Bearing Using Special Tool MD998917
G05375671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
