>> C << Tapered Roller Bearing Inner Race Installation

WARNING: This page is about a different variant/trim than selected.

Using special tools MB992138, install the tapered roller bearing inner race.

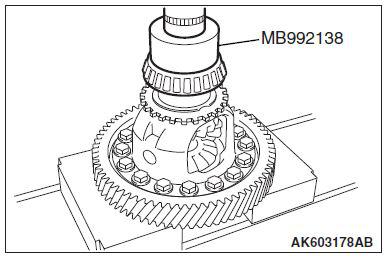

Fig 1: Installing Tapered Roller Bearing Inner Race Using Special Tools MB992138
G05375722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
