>> B << SPEEDOMETR Drive Gear Installation

WARNING: This page is about a different variant/trim than selected.

Using special tools MB990891, install the speedometer drive gear.

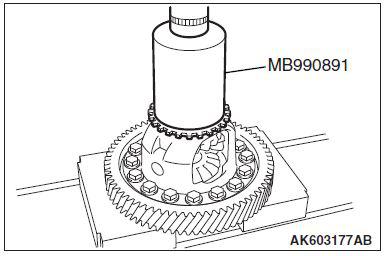

Fig 1: Installing Speedometer Drive Gear Using Special Tools MB990891
G05375721Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
