>> C << Extension Housing Oil Baffle Installation

WARNING: This page is about a different variant/trim than selected.

Install the extension housing oil baffle to the clutch housing case assembly with its projections fitted in the slots in the clutch housing case assembly.

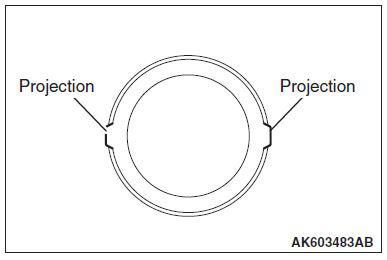

Fig 1: Identifying Extension Housing Oil Baffle Projection
G05375703Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
