>> B << Oil Seal Installation

WARNING: This page is about a different variant/trim than selected.

Using special tools MD998200, install the oil seal.

Specified grease:

Mitsubishi Motors Genuine Part No. 0101011 or equivalent

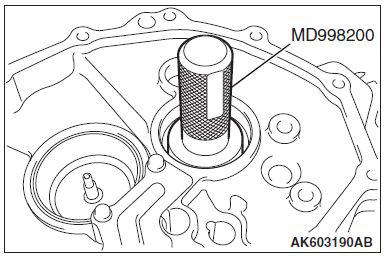

Fig 1: Installing Oil Seal Using Special Tools MD998200
G05375702Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
