Removal And Installation

WARNING: This page is about a different variant/trim than selected.

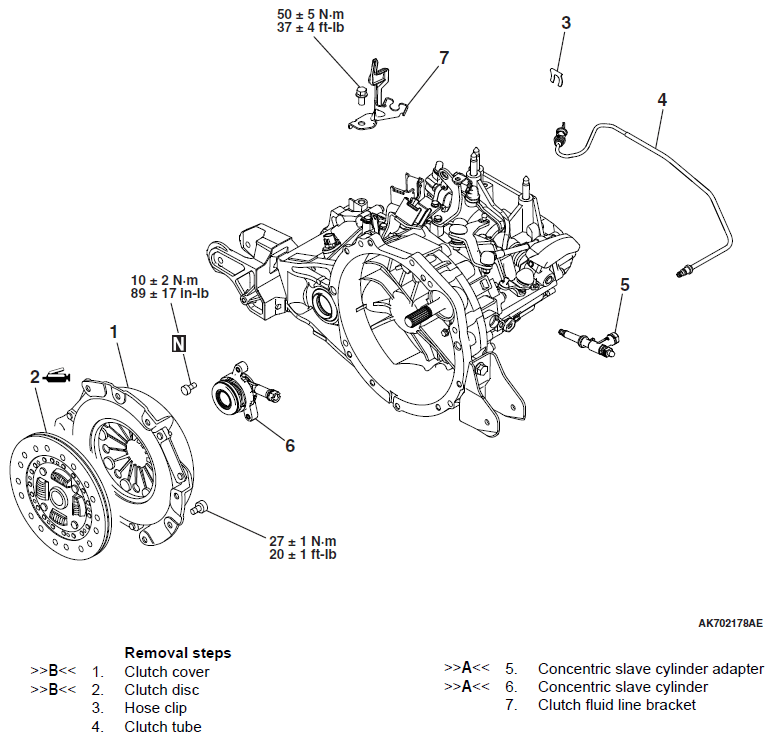

Fig 1: Removing/Installing Clutch Components With Torque Specifications
G09625549Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
