>> A << Concentric Slave Cylinder/Concentric Slave Cylinder Adapter Installation

WARNING: This page is about a different variant/trim than selected.

After setting the concentric slave cylinder to the transaxle case, tighten the flange bolt temporally.

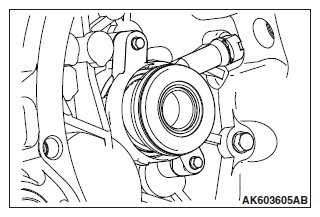

Fig 1: Identifying Concentric Slave Cylinder To Transaxle Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Assemble the concentric slave cylinder adapter with the concentric slave cylinder.
NOTE: Fit into the groove of the transaxle case.
Tighten the flange bolt to the specified torque.
Tightening torque: 10 ± 2 N.m (89 ± 17 in-lb)

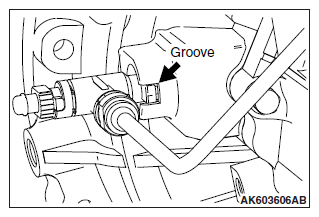

Fig 2: Locating Groove Of Transaxle Case
