Clutch Switch Check < Vehicles With Cruise Control >

WARNING: This page is about a different variant/trim than selected.
CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.
  1. Check the clutch pedal.
  2. Connect an ohmmeter to the clutch switch connector, and then check for continuity when the clutch pedal is fully depressed and when it is released outward.
    Tester connection Pedal position Specified condition
    1-2 Fully depressed Continuity
    (Less than 2 ohms)
    Released Open circuit
  3. If the continuity is incorrect, replace the clutch switch.

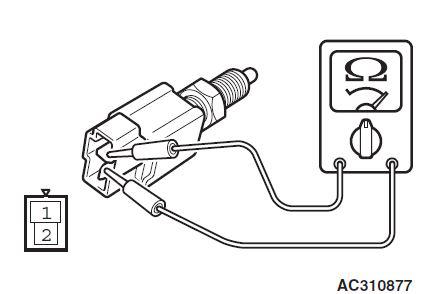

    Fig 1: Checking Clutch Switch Continuity
    G05375561Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
