Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

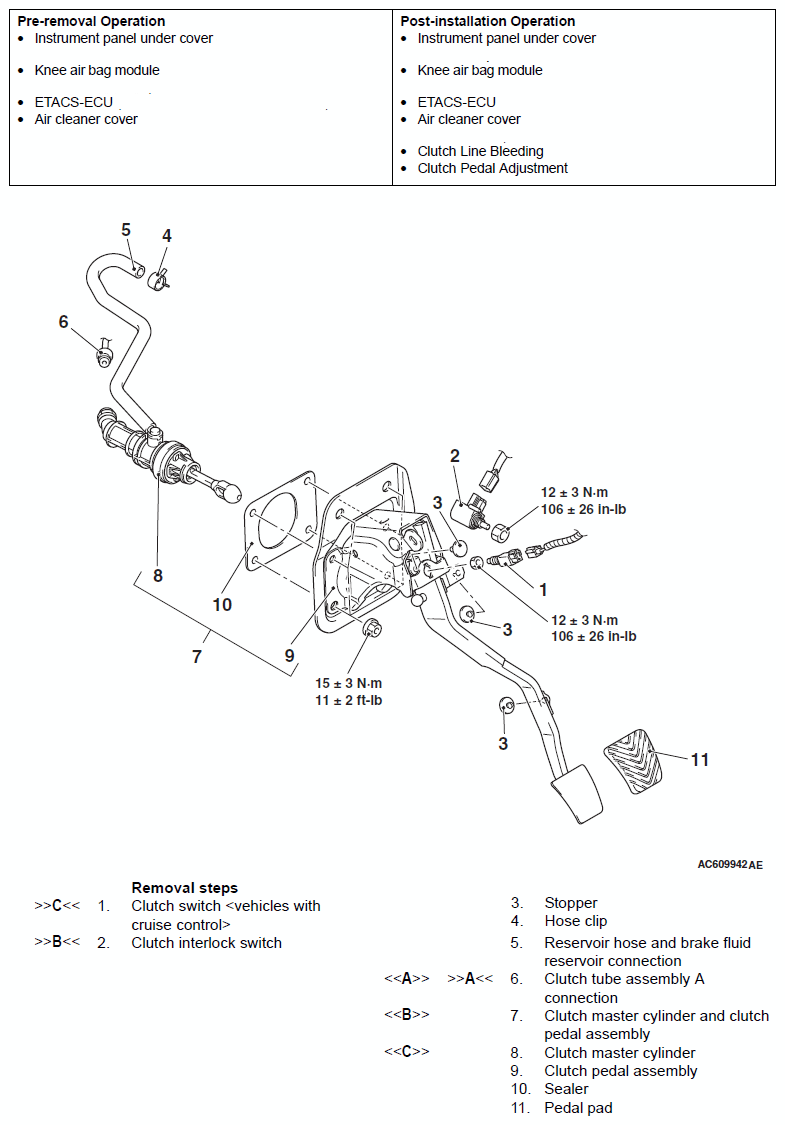

Fig 1: Removing/Installing Clutch Pedal And Master Cylinder Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
