<< A >> Transaxle Case Oil Seal (LH)/Transaxle Case Oil Seal (RH) Removal

WARNING: This page is about a different variant/trim than selected.

Insert the tapping screw (ø 3 mm [0.1 inch]) to one of four hollows (round shape) on the oil seal by turning it 2 or 3 times.

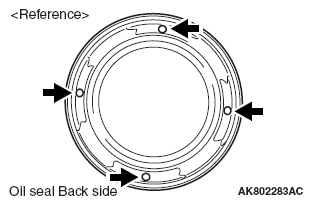

Fig 1: Locating Transaxle Case Oil Seal Screw
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Inserting Transaxle Case Oil Seal Screw
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tap the opposite side of the inserted tapping screw using a knock pin punch to press in the oil seal approximately 1 mm (0.04 inch).

Fig 3: Pressing Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Hold the inserted tapping screw with pliers or similar tools, and remove the oil seal.
NOTE: If the transaxle case oil seal (RH) is replaced, the V-ring must also be replaced.

Fig 4: Holding Inserted Tapping Screw Using Pliers
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
