Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

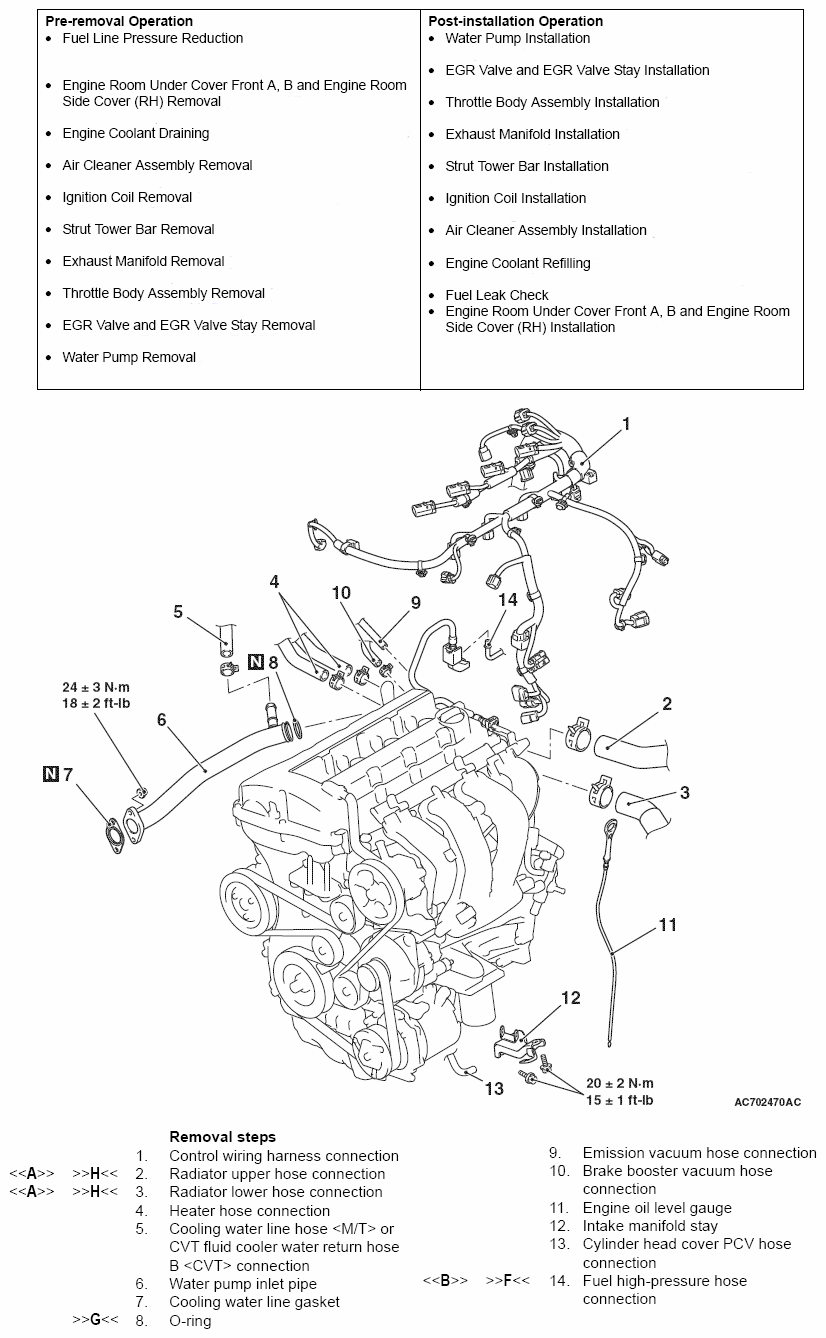

Fig 1: Cylinder Head External Components With Torque Specification
G09619690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

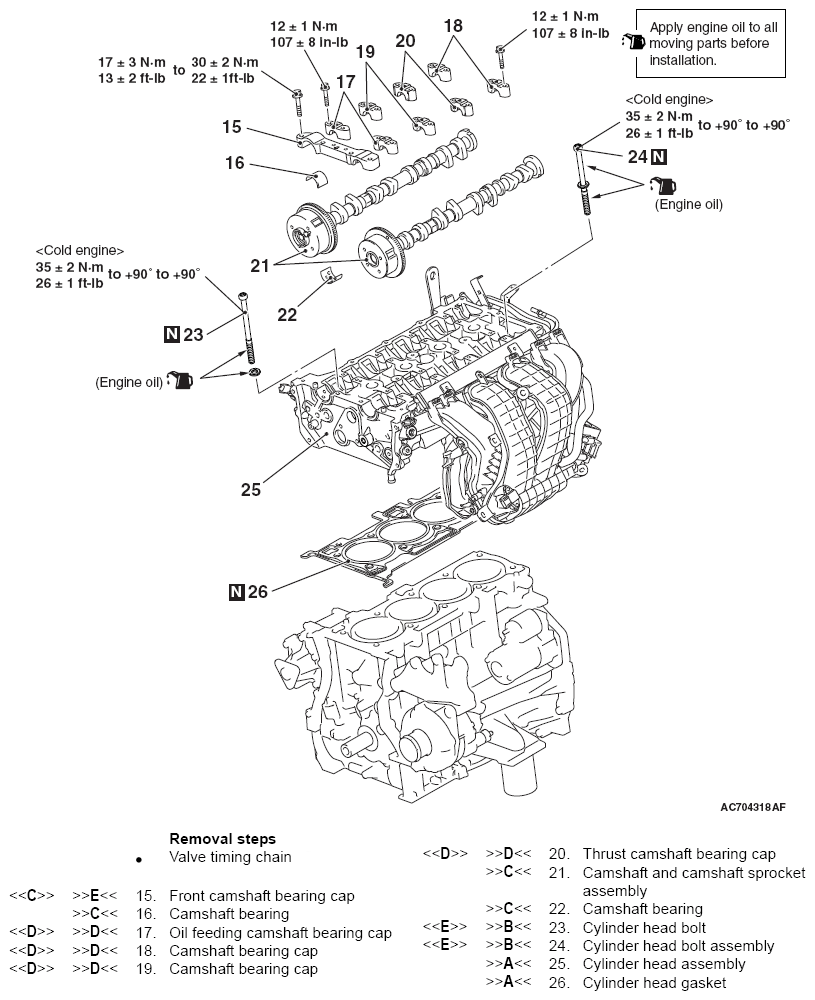

Fig 2: Camshafts, Cylinder Head & Cylinder Head Gasket With Torque Specification
G09619691Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
