Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

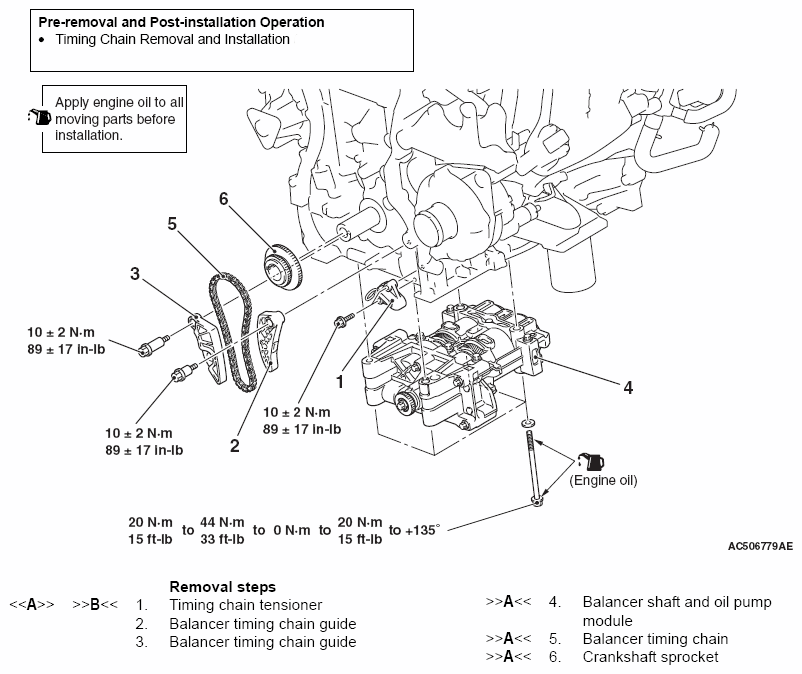

Fig 1: Removing/Installing Balancer Timing Chain, Balancer Shaft And Oil Pump Module With Torque Specification
G09619730Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
