Inspection Procedure 2: The Switch Position of the Drive Mode Selector does not Match with the Indicator Display in the Combination Meter: Notes

WARNING: This page is about a different variant/trim than selected.

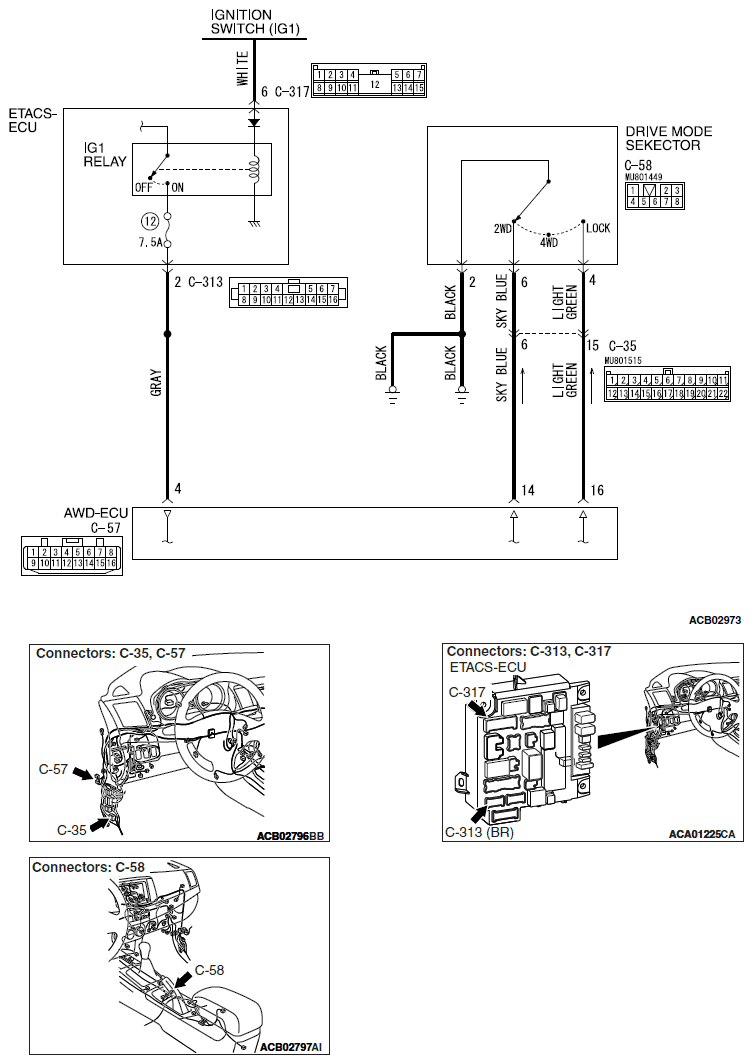

Fig 1: Drive Mode Selector - Circuit Diagram
G09626791
