Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

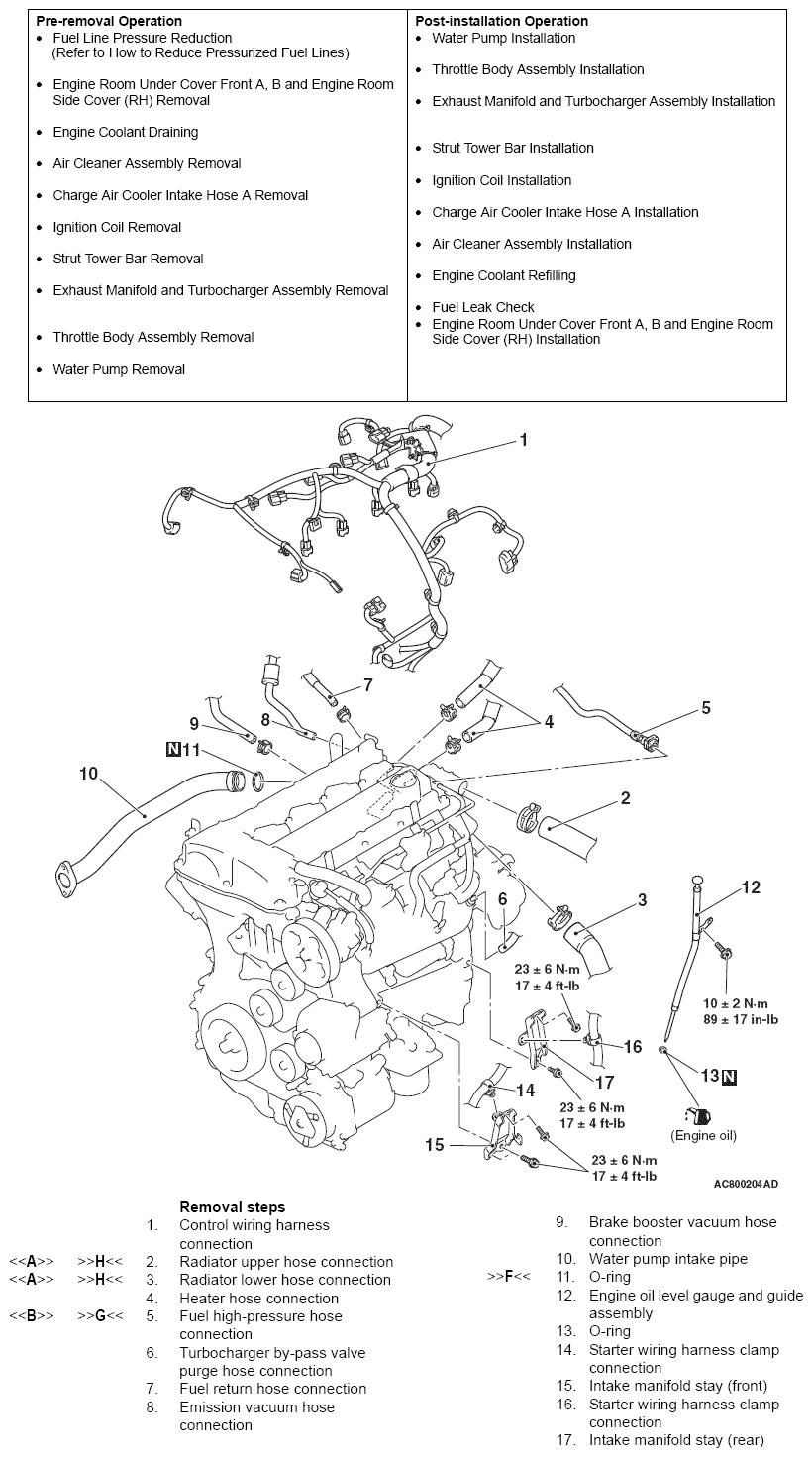

Fig 1: Cylinder Head Gasket Replacement Components With Torque Specifications (1 Of 2)
G09619345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

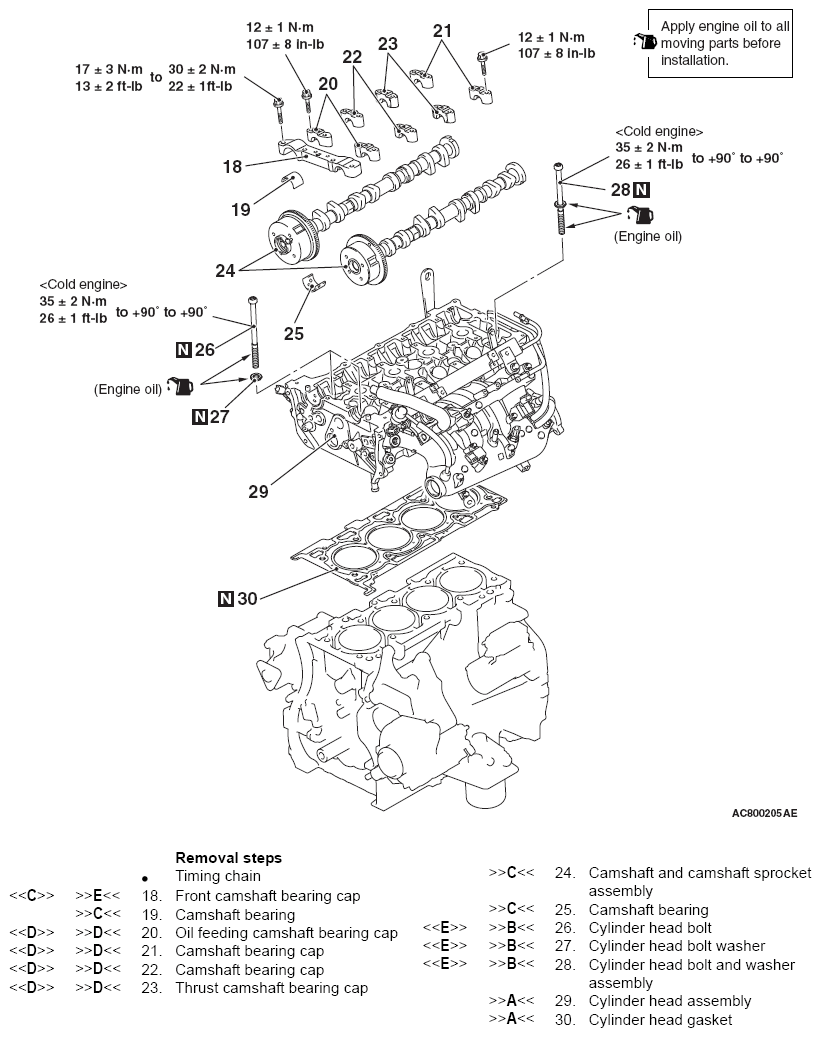

Fig 2: Cylinder Head Gasket Replacement Components With Torque Specifications (2 Of 2)
G09619346Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
