<< A >> Column Switch Assembly Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a pliers or similar tool, pinch and lift the band clump pin shown in the figure.
    Fig 1: Identifying Band Clump Pin
    G09667057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. With the flat-tipped screwdriver inserted into the column shaft groove shown in the figure, lift the claw shown in Section A - A in the figure, and then remove the column switch assembly by pulling out the column switch assembly.

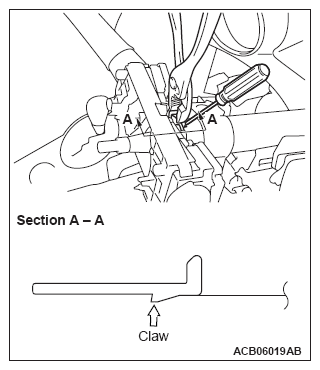

    Fig 2: Removing Column Switch Assembly
    G09667058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
