Column Switch Body

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ) < Vehicles with ASC >.

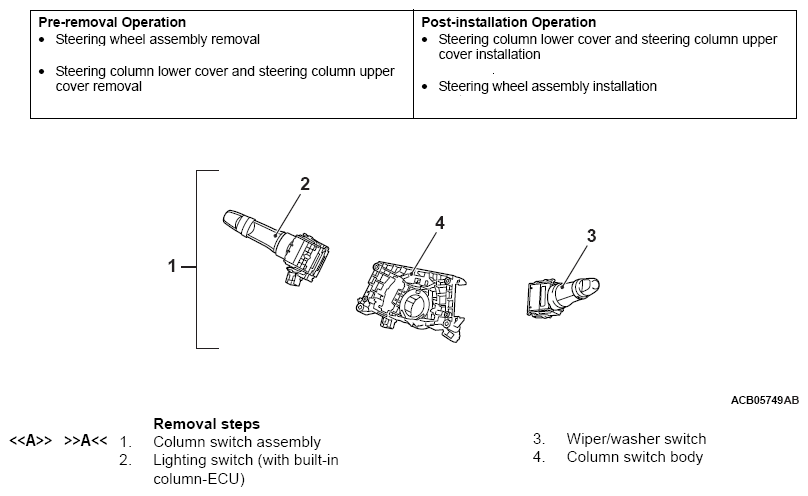

Fig 1: Identifying Column Switch Assembly, Lighting Switch, Wiper/Washer Switch And Column Switch Body

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
