LOGIC FLOW CHARTS (Monitor Sequence) < Functional check - 4th gear >

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

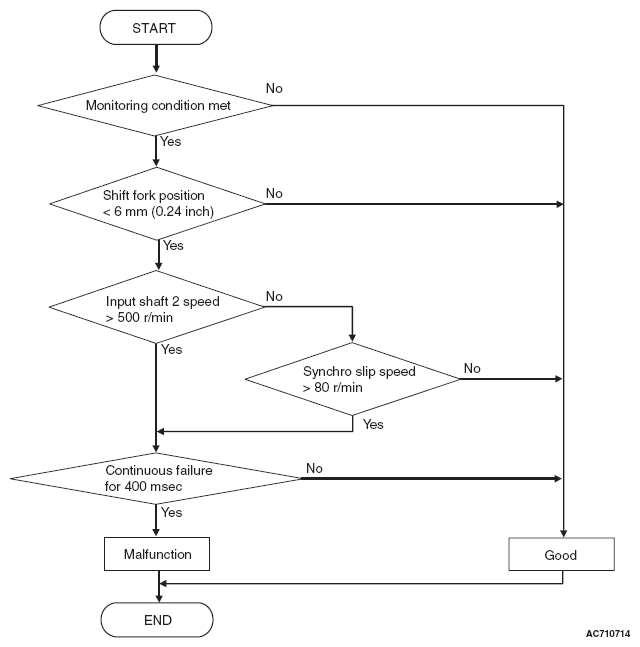

Fig 1: Logic Flow Charts (Monitor Sequence) < Functional Check - 4th Gear
G05394178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
