Inspection Procedure 6: Shift Lever-Ecu Power Supply Circuit Abnormality: Notes
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

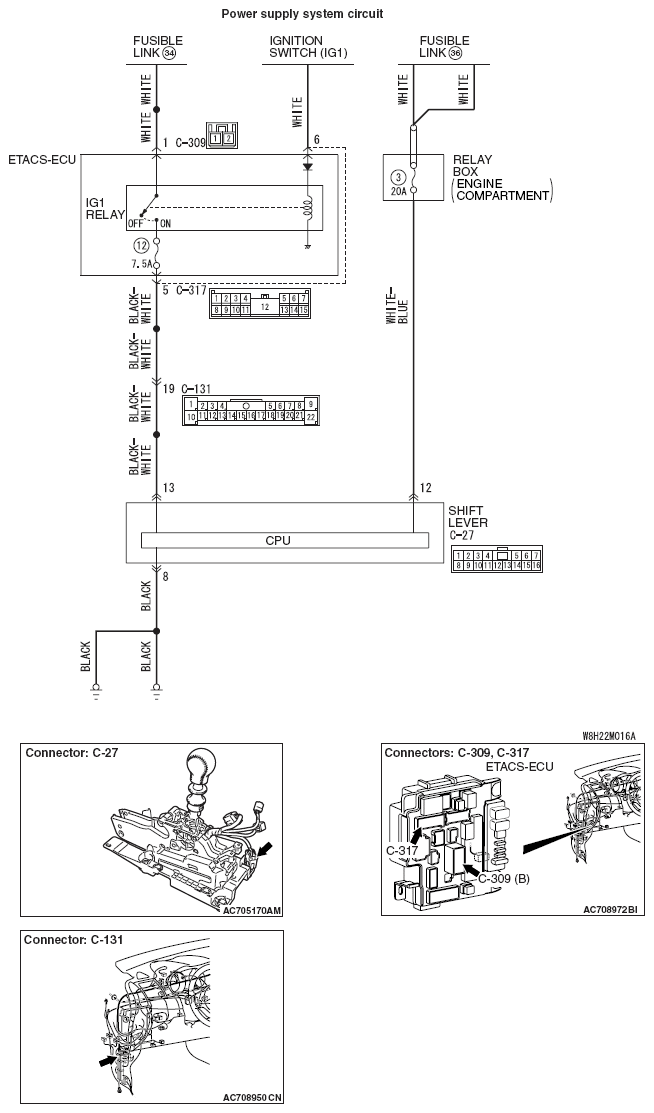

Fig 1: Power Supply System Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
Whenever the ECU is replaced, ensure that the CAN bus lines are normal.
