Removal And Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the radio and CD player is replaced, always turn the ignition switch to the "ON" position once and then carry out the operation check.

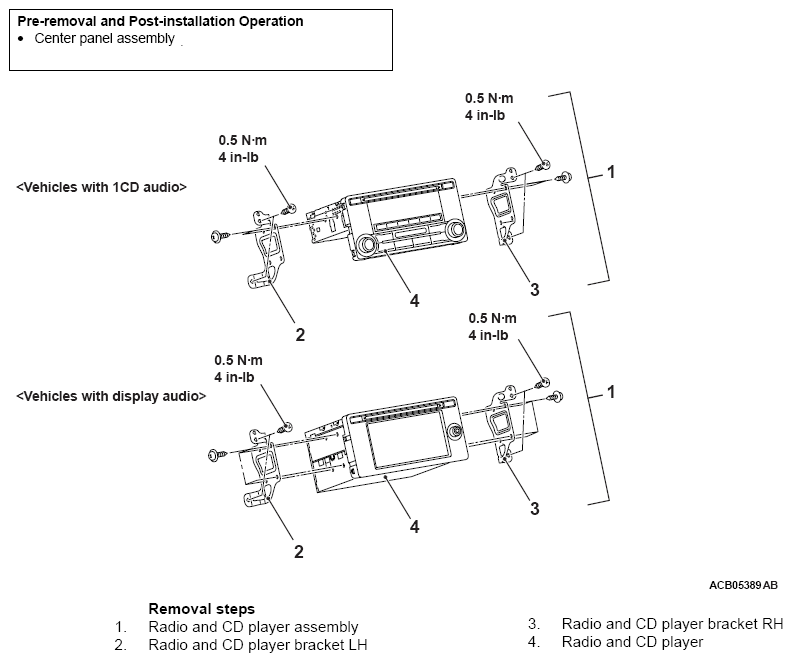

Fig 1: Exploded View Of Radio And CD Player With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For the USB cable removal and installation procedures, refer to REMOVAL AND INSTALLATION .

For the USB adapter removal and installation procedures, refer to REMOVAL AND INSTALLATION .
