<< A >Liftgate Gas Spring Connection Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not disassemble or throw the liftgate gas spring assembly into the fire.
Before disposal, make a hole to remove the gas.
Make sure that the piston rod should not collect any foreign particles.

Slide the pin and remove the liftgate gas spring assembly from the ball joint in the direction of the arrow shown in illustration.

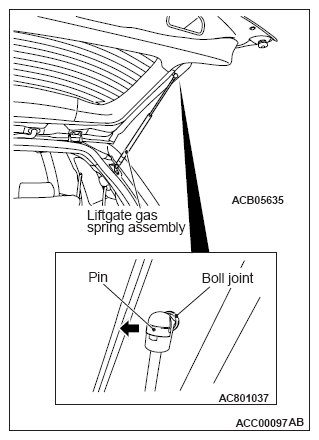

Fig 1: Removing Liftgate Gas Spring Assembly From Ball Joint

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
