Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

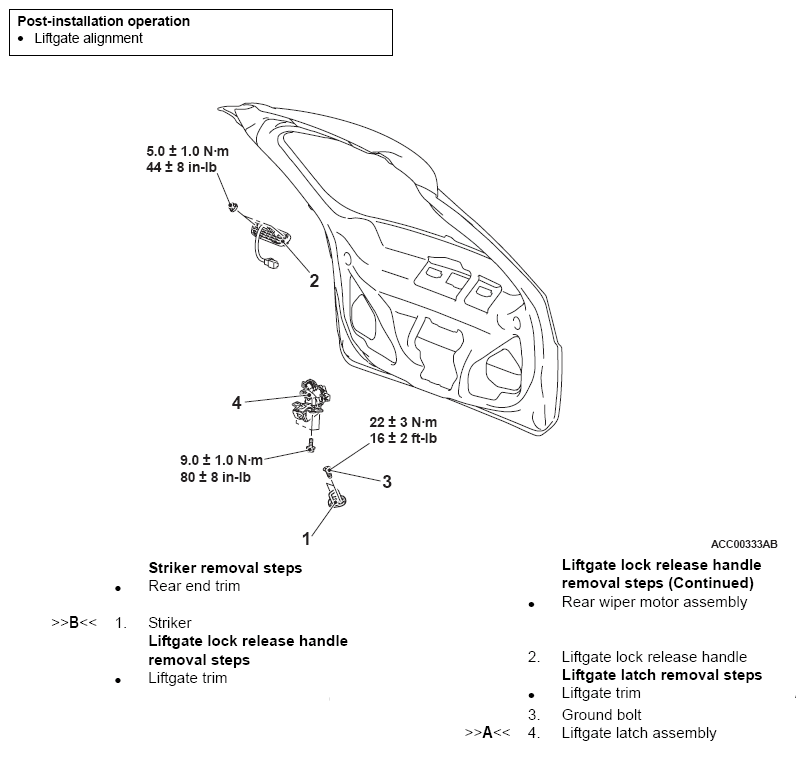

Fig 1: Removing/Installing Liftgate Handle And Latch With Torque Specification
G09666192Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
