Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application
G09666125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990480 Glass holder General service tool Removal and installation of power window regulator
G09666126Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990900 or MB991164 Door adjusting wrench MB990900-01 Adjustment of door fit
G09666127Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990925 Bearing and oil seal installer set
  1. MB990939 Remover bar
 MB990925-01 or General service tool Adjustment of door striker
G09666128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990211 Slider hammer MB990211-01
G09666129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB990241 Axle shaft puller
  1. MB990243 Body puller
 MB990241-01 or General service tool

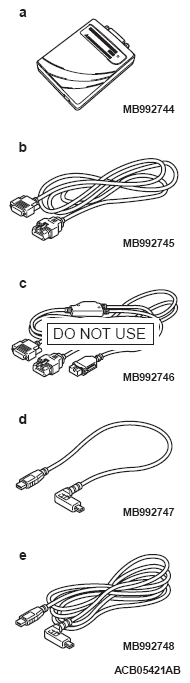

G09666130Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748

  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 -
  • Diagnostic trouble code, service data, actuator test check
  • Registration of ID codes

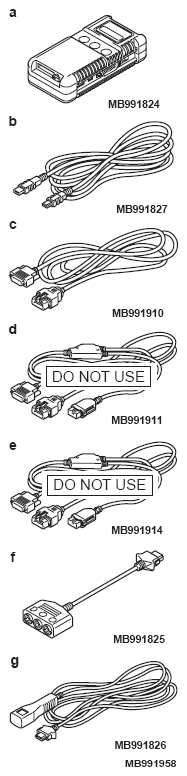

G09666131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991955
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (for vehicles with CAN communication)
  4. M.U.T.-III main harness B (for vehicles without CAN communication)
  5. Measuring adapter harness
  6. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
ETACS-ECU check (Diagnostic trouble code, service data)
G09666132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adaptor
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G09666133Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
