>> A << Windshield Spacer/Glass Stopper Installation
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before the next operation, leave the decreased parts for 3 minutes or more to dry. Do not touch the coated surface.
- Use parts cleaner (3M™ AAD Part number 8906 or equivalent) to degrease the inside circumference of the windshield glass and the body flanges.

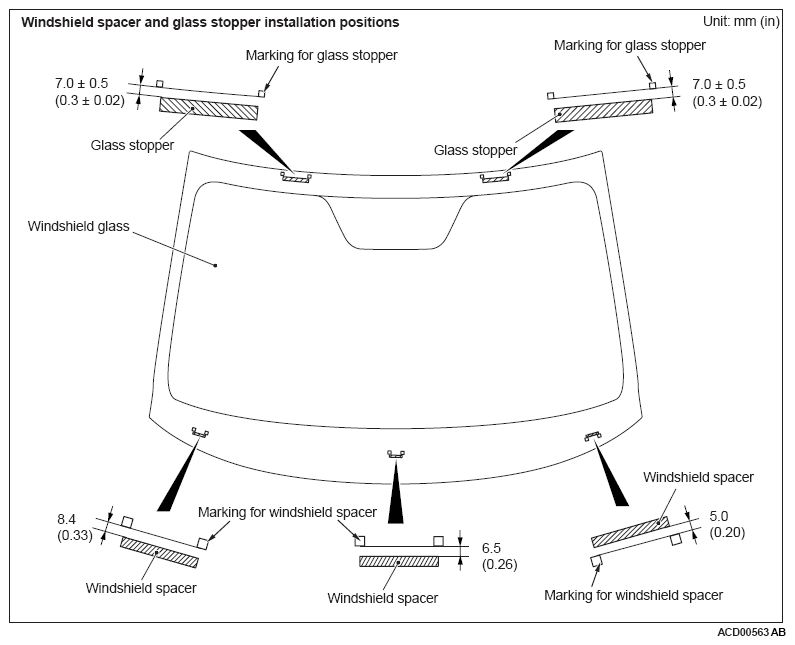

- Position the windshield spacer, ensuring that there are no bends or looseness inside the windshield glass.
- Secure the glass stoppers to the specified positions on the windshield glass.
