>> A << Liftgate Dam/Glass Stopper/Fastener Installation

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the parts cleaner (3M™ AAD Part number 8906 or equivalent) to degrease the inside circumference of the liftgate window glass and liftgate flanges.

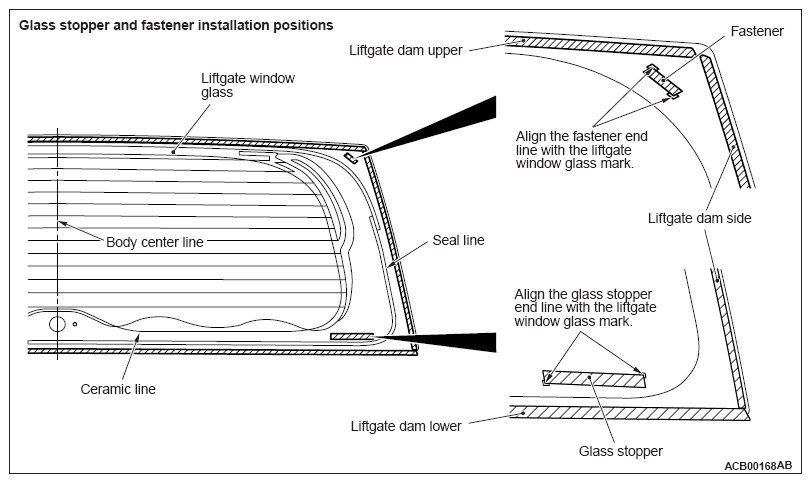

    Fig 1: Identifying Glass Stopper And Fastener Installation Position
    G09666119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Peel off the protection sheet on the back of the liftgate dam and paste it to the specified position on the liftgate window glass.
  3. Install the glass stopper and fastener to the specified position on the liftgate window glass
  4. Install the fasteners to the specified positions on the liftgate flange.
    Fig 2: Identifying Glass Stopper And Fastener Position Installation Dimension On Liftgate Window Glass
    G09666120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
